LabVIEW Process Controller Library

Enable your automation programming by using our LabVIEW Process Controller Communication Libraries to add drag and drop, instrument driver style VIs to your LabVIEW programming that can communicate with off-the-shelf DIN rail controllers.

Features & Capabilities

Labor-saving, device-specific palettes of VIs provide quick access to the features you need. Friendly controls and typedefs save you from having to remember command options and interpreting responses. Certified Compatible with LabVIEW. Supports LabVIEW 8.0 and later.

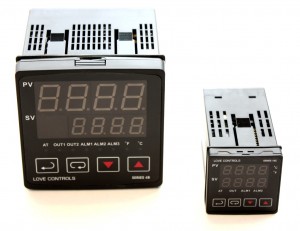

Libraries available for the following controllers:

• Love Controls C Series
• Love Controls B Series
• Omega CN73x, CN71x, CN74x
• Omega CN72xx, CN75xx, CN76xx, CN78xx
• Delta DTA Series
• Delta DTB Series

Each library includes VIs you need to be up and running fast:

• RS-485 serial port management
• Read and write process and setpoint variables
• Monitor alarm and output status
• Configure controller modes and settings

Applications: Setpoint profiles and recipes, Environmental testing, Configuration management, Supervisory control, Monitoring and data acquisition, Process control, Integration of controllers into laboratory test applications, OEM software.

Purchase: Contact Us for pricing and evaluation.

View Datasheet (PDF) | View User Manual & Documentation (PDF)

LabVIEW Panel Meter Library

This VI library contains VIs (Virtual Instruments) and example code for implementing communication between National Instruments LabVIEW and one or more Red Lion Controls CUB5 series panel meters via RS-485 serial bus. The library also supports communication via USB or RS-232 serial to a single device.

Supported Hardware:

• CUB5 counter
• CUB5T timer
• CUB5V DC voltage meter
• CUB5I DC current meter
• CUB5RT temperature meter
• CUB5P process meter (4‐20mA)

Features:

• RS-485 serial port management
• Read and write input and setpoint variables
• Read rates and cycle counts
• Configure controller modes and settings
• Monitor alarm conditions

Applications: Tachometers, Flow meters, Scales, Batch management, Item counting, Multiple configurations.

Purchase: Contact Us for pricing and evaluation.

View Datasheet (PDF) | View User Manual & Documentation (PDF)

Control & Automation

Integrated Pro has helped many customers with control and automation needs including developing custom programs and panels, instrumentation, control, positioning, and sequencing. We can integrate solutions from different vendors or help develop in-house capabilities.

• Instrumentation
• Motion Control
• PID Control
• PLC Programming
• Process Control
• SCADA applications
• HMI Operator Interfaces

Experimental Testing

We can implement experimental test and automated data acquisition systems tailored to validate engineering designs and ensure quality control.

Engineering

Integrated Pro is a professional engineering company with capability to design and construct specialized equipment, perform analysis and customize hardware and systems.

NI LabVIEW Systems

NI LabVIEW is the standard used by professionals the world over for test and measurement. Integrated Pro specializes in setting up data acquisition systems powered by NI LabVIEW in support of many different test and measurement scenarios ranging from a laboratory environment or industrial setting, to a field location or vehicle test.

As experts in NI LabVIEW programming and hardware integration, we develop robust, scalable LabVIEW software architectures for complex automated testing, data acquisition, and real-time monitoring applications.

We can help you design, install, commission and support a LabVIEW-based control and automation system. Your project will be developed to your specifications and professionally maintained using source code control using industry standard, best practices. Some clients are themselves interested in developing their own in-house capabilities, but need some help getting started and putting training into practice. We work with them and give LabVIEW programming hands-on help as needed to overcome obstacles and get them up to speed quickly.
